Moving Vision Processing to My 4-Wheel Robot, Part 2

Leave a reply

Posted 03 August 2026,

Part 1 in this series laid out the strategy for adding vision processing capabilities to my 4-wheel robot. This post continues that effort.

The first step was to replace the Teensy 3.6 main controller with a Teensy 4.1. As part of this process, I also replaced the glued-on ‘Gnd’ and ‘+5V’ bussbars with a bit more finished product, as you can see in the following photos:

The next step is moving the old 4-wheel firmware to the ‘new-improved’ 4-wheel hardware. I started this by porting “C:\Users\Frank\Documents\Arduino\WallE3_Git\WallE3_Git\WallE3_Git.ino” to “C:\Users\Frank\Documents\Robot_Projects\VisionEnhaned4WheelRobot_V1\VisionEnhaned4WheelRobot_V1.ino”. This took a while, and I’m not sure I wouldn’t have been better off just cloning the entire WallE3_Git.ino file, but I “got it done’.

05 August 2026 Update:

It took a while, but I now have a working 4-wheel drive robot program running again on the 4-wheel chassis with a Teensy 4.1 main controller The only small ‘gotcha’ I encountered during the Teensy 3.5 -> Teensy 4.1 controller switch was the control lines for the right motor driver. It turns out the ‘speed’ (PWM) pin used on the Teensy 3.5 isn’t PWM-capable on the Teensy 4.1, so this required some minor pin swapping, as shown below:

Using the manual control features built accessible via the ‘CheckforUserInput() function, I was able to perform left/right 10 degree turns and speed up/slow down, all from my keyboard. I don’t have the second deck connected up yet, but that is next on the agenda.

Upgraded 4-wheel robot demonstrating basic motor

06 August 2026 Update:

4-wheel robot with Raspberry Pi5 and OAKD-Lite camera mounted on 2nd deck

At this point I have a complete 4-wheel drive robot assembled with a Raspberry Pi5 and OAKD-Lite camera, and I can send it basic (left/right/faster/slower/forward/reverse) movement commands via a serial port. In previous work on the 2-wheel robot I demonstrated the ability to send vision-processing-derived movement commands to the main processor from the Pi5 via a serial port.

It occurs to me that with the above capability, The robot doesn’t really need anything else for navigation and obstacle avoidance. The OAKD-Lite can provide visual depth information to the Pi5, and the Pi5 can send basic movement commands to the robot. In addition, it seems to me that I might be able to eliminate the entire ‘homing-to-charger’ software and hardware blocks, as the camera should be able to tell the Pi5 where the charger dock is located in the field of view, and the Pi5 should be able to tell the robot which way to turn and by how much, and when to speed up and slow down. This could make the robot a LOT simpler (as Elon Musk said about Tesla FSD “Once you have vision solved, you no longer need anything else’).

08 August 2026 Update:

The robot is alive! With Grok’s help I now have a python script running on the Pi5 that can direct the robot to turn left or right depending on image processing by the OAKD-Lite camera.

First, the Python shell script ‘restart_camera.sh’ is executed to get the OAKD-Lite camera ready:

Once the camera is ready, then the demo program ‘clearest_direction_node.py’ is executed on the Pi5 (with ‘VisionEnhanced4WheelRobot.ino already running on the Teensy 4.1)

Based on a rudimentary analysis of the depth (distance) distribution in the camera field of view, the ‘clearest_direction_node.py’ Python script sends left/right/stop commands to the Teensy 4.1 from the Pi5’s serial port to the Teensy 4.1’s ‘Serial1’ port. The commands use the already-existing robot manual motion control command structure shown below:

Here’s a short video showing the action

Here’s another short video showing the robot actually making 10-deg turns left & right in response to a simulated obstacle in the field of view:

And here is some of the telemetry output from the above run:

At this point in the project, we have demonstrated that visual ‘depth’ information can be used to guide the robot, and we have separately demonstrated that the Teensy firmware can be updated ‘Over The Air’ (OTA) via the wifi connection to the Pi5. I believe the next step should be to add wifi OTA to the ‘clearest_direction_node.py’ script in order to remove the requirement for physically attaching a USB cable to the Teensy 4.1 to update the firmware.

08 August 2026 Update:

Adding Wifi OTA to the current ‘clearest_direction_node.py’ configuration turned out to be relatively easy, as this ability had already been developed as a stand-alone demo back in June 2026. All we had to do was update the ‘board.txt’ file to point to the new location of ‘PostBuild_OTA.py’ on my PC, and make sure ‘Wifi_OTA.py’ was running on the Pi5 so it would look for changes in “/home/pi/my_vision_robot/firmware/latest.hex” and trigger the update.

09 August 2026 Update:

Thinking while drifting off to sleep last night, I realized that the addition of the Pi5 to the robot means that all the navigation and obstacle avoidance tasks (including possibly navigating to and connecting with the charger module) will be handled by the Pi5, which significantly simplifies the Teensy 4.1 code. All the Teensy code has to do now is respond to motion commands from the Pi5, monitor the various hardware sensors and update the rear-facing LED array.

Teensy Responsibilities:

  • Run the motors in response to motion commands from Pi5 on Serial1
  • Update the ‘state-of-charge’ (and left/right steering) LEDs
  • Monitor the output from three different 1NA169 current sensors (I_chg, I_tot, I_upper-deck)
  • Monitor the output from two different Vbatt voltage sensors (V_batt, V_upper-deck)
  • Monitor the ‘charger connected’ output from the TPS5100 battery pack
  • Monitor the rear-facing VL53L1X LIDAR for rear collision avoidance
  • Run the speaker
  • Home in on and connect to the charger module (may be done by the Pi5 instead)

Pi5 Responsibilities:

  • Manage all navigation and obstacle avoidance tasks
  • Possibly manage charger module homing (April tag?)
  • Create map (SLAM)?
  • Respond to rear-facing obstacle alerts from Teensy
  • Pass robot telemetry data on Serial1 to PC
  • Pass Pi5-software-related telemetry data to VS Code terminal

10 August 2026 Update:

Good progress on the vision-enhanced robot project today. Yesterday we installed two additional cases in the switch block that accepts manual control commands for the robot, to allow the user to command left/right turns of an arbitrary number of degrees at an arbitrary turn rate. The command format consists of the letter ‘L’ (left/CCW) or ‘R’ (Right/CW) followed by the number of degrees to turn (and optionally a specified turn rate in deg/sec), but the commands failed. Today (while waiting in the cellphone lot for my wife) I figured out what was wrong with the teensy command parsing code. Now I can type “L30.5” at a VS Code prompt that gets transmitted via SSH over Wifi to the Pi5, then via the dedicated serial to the Teensy. Then the Teensy calls ‘SpinTurn(30.5, rate = 30) to actually effect the turn. Here’s a short video showing a left (CCW) turn of approximately 90 deg at a 90 deg/sec rate, followed by another left turn of 90 deg at the default 30 deg/sec rate, followed by a right turn of 180 deg at the default 30 deg/sec rate:

We also implemented a replacement for my old telemetry display using the Visual Studio serial port monitor. In theory I could maintain that feature as I still have the HC-05 Bluetooth serial module installed on the robot, but I would rather put everything over wifi for better range & reliability. What we did instead was to have WallE_5.py log everything that comes to it on its serial port (Teeny ‘Serial1’) to a ‘telemetry.log’ file, which allows me to start up a new Pi5 terminal session in its own window and run

to display whatever telemetry information the teensy is sending to ‘Serial1’. Here’s a short sampling of the telemetry data setup:

15 August 2026 Update:

I discovered that the Teensy 4.1 was unresponsive – yuk! After some research and troubleshooting, I realized that I had fallen into a classsic Teensy 3.5->4.1 transition trap; Teensy 3.5 is 5V tolerant on (almost) all pins, while the 4.5 is not. I didn’t really look hard at the circuit before making the 3.5->4.1 change, but almost all the peripheral hardware produces 5V signals on the MCU pins – oops!

So, I have spent the last few days going backwards – from Teensy 4.1 to Teensy 3.5. I took the opportunity to improve wire/pin labelling while doing the reverse transition. Here is the updated schematic:

And here are some photos showing the wire labelling:

I created a small test program, originally to just test the rear-facing VL53L1X LIDAR, but later expanded to test all sensors. Here’s the code:

And here’s the output showing all three current sensors, the battery voltage, and the rear-facing VL53L1X LIDAR output (variations in the rear distanced are due to my waving my hand in front of the sensor).

I wasn’t quite sure what to make of the zero readings for Bot_I, but then I realized that when the USB cable is plugged into the Teensy 3.5, it provides all the current needed for the first deck peripherals, meaning the current through the Bot_I INA169 sensor is essentially zero.

Next I ported the MPU-6050 support code from the VisionEnhanced4WheelRobot project into my little demo program and put some code in ‘loop()’ to add the IMU heading output to the sensor line. This didn’t work at first, but with Grok’s help I traced the problem to a disconnected power/ground lead from the main power distribution bus to the MPU6050. Once this was connected, the demo program started working right away:

I also installed and tested a front-facing red laser diode and exercised the on-board speaker. At this point I believe I have exercised/tested all the sensors, the laser diode and the speaker. I haven’t run the motors with this program as I believe that will happen when I get back to the ‘mainline’ VisionEnhanced4WheelRobot.ino program.

16 August 2026 Update:

I back-ported the code from my VL53L1X_Demo program back to my VisionEnhanced4WheelRobot program and after the normal number of mistakes, got it going. Here’s a small bit of output from loop(), with me rotating the robot back and forth to show variation in the ‘Hdg’ and ‘RearCm’ values:

Then I fired up the VS Code connection to the pi5, started WallE_5.py supervisor program and verified that I could send motor commands in the WallE_5.py window and have the robot respond appropriately – yay. I also verified that ‘tail -f ./logs/telemetry.log’ in a separate VS Code terminal window produced the same telemetry output as above.

17 August 2026 Update:

I finally have the ‘VisionEnhanced4WheelRobot’ program running again with a Teensy 3.5. The last little bit was undoing the change in motor control pin assignments for the right-hand motor driver. Going from Teenys 3.5 to 4.1 I had to change the pin assignments to place the ‘speed’ pin on a PWM-able output pin, and going back I didn’t initially undo this pin assignment – all fixed now.

At this point the robot firmware is pretty much complete – it correctly monitors all three current sensors, the battery voltage, the current heading, and the rear distance reading. I think the next step is to work on the python side to add more navigation and obstacle-avoidance ‘smarts’.

Stay tuned!

Frank

New Current Sense & Step-Down Regulator Board

Leave a reply

In my old 4-wheel robot setup, I had a 5V regulator built around an LF50CV low-voltage dropout 3-pin regulator. Unfortunately, with the added current drain of the Pi5 and OAKD-Lite Camera, the LF50CV started dropping the output voltage to the point where the Pi5 started to get flaky. In discussing this with Grok, he suggested The Pololu D24V50F5 step-down regulator shown below:

I did some initial testing on the module:

  • At 9.1V at the ‘Switched Battery input, the Vbatt monitor voltage was 3.3V – the upper limit for inputs to a Teensy 4.1. Since 9.1 is well above even the high charging limit (~8.4V), this seems pretty safe.
  • At a measured Irun = 0.2A, Irun_out measured 90mV
  • At a measured Irun = 1.5A, Irun_out measured 0.4V
  • at a measured run = 1.14A, Irun_out measured 0.255V

Then attached a USB Type C male pigtail to the regulator output and then plugged it directly into the Raspberry Pi5. The Pi5 booted right up and I was able to access it from my PC using VS Code. Regulator output voltage with Pi5 connected was 4.99V at a measured input current of about 0.55A.

Here’s a photo showing the current sense/regulator module already hot-glued to its 3D-printed mounting plate.

30 July 2026 Update:

Yesterday the plan was for the existing LF50CV-based LDO 5V voltage regulator to be replaced with the above D24V50F5 DC-DC step-down regulator. However, as I was waiting for sleep last night, I was thinking about the increased 5V current level required by the Raspberry Pi5 and the OAKD-Lite camera and the fact that in the current (no pun intended) design, that 5V power comes from a module on the lower deck. So even with the higher current capacity (nominally 5A max) provided by the D24V50F5 regulator, there is still going to be a significant voltage drop in the approximately 2 meters of 24-guage stranded hookup wire and the TE Connectivity ‘MATE-N-LOK inter-deck connector. As Grok reminded me, there is not only the 1m line TO the Pi5/Camera, there is also the ground wire coming BACK for a total of approx 2m and two times through the connector. Grok noted that the total round-trip IR drop at 3A would be about 0.5V, which would place the input voltage at the Pi5 at about 4.5V, way too low for reliable operation.

That made me realize that even if I replaced the LF50CV-based LDO 5V voltage regulator with the D24V50F5 5A module, it *still* wouldn’t provide a clean 5V to the Pi5. It was at that point that the way to skin this cat was to leave the LF50CV-based LDO 5V voltage regulator in place on the bottom deck and move the D24V50F5 5A module to the top deck where the wire length to the Pi5 would be more like 0.1m instead of 2m – problem solved!

Well, not entirely, as I still have to get +Vbatt (nominally 8V) up to (and back from) the second deck, with the same 2m + 2x through the connector as before. But now that same 0.5V IR drop is applied to Vbatt instead of +5V, and that makes the problem go away entirely – yay!

Looking at a recent system schematic:

I see that +5V from the LF50CV goes through the interdeck connector on pin 1 (red), and the return path is on pin 2 (black). I believe all I would have to do is move the red wire from the output to the input of the LF50CV module. No, not that simple – the LF50CV output goes directly to the Teensy main controller 5V buss, and a separate wire goes from that 5V buss up through the interdeck connector to a terminal strip. That wire will have to be disconnected from the Teensy 5V buss and re-connected to Vbatt at the input to the LF50CV module. At the other end, the wire will have to be disconnected from the terminal strip and routed instead to the ‘Batt’ terminal of the D24V50F0 module. The output (both +5 and GND) from the D24V50F0 module must be routed back to the terminal strip. At this point, the two 5V regulator modules will be tied to the same (GND) reference, but supply entirely different circuits. Here’s a photo of the D24V50F0 module installed on the upper deck.

With this setup I was able to run the Pi5 for several hours before the +5V supply dropped to low to continue.

I need at least four additional lines from the Teensy 4.1 to the 2nd deck. Two lines for Serial1-Pi5 comms and two for Vbatt/Irun sensors on the 2nd deck 5V regulator board. The existing Brn/Wht wire pair has already been designated on the schematic for Serial1-Pi5 comms, and the existing but unassigned Blu/Gry pair can be used for the sensor lines. Note that the robot now sports *three* 1NA169 current sensor modules (the third one is in the base with the battery pack), and two of those also provide (Vbatt – 6V) voltage outputs. The pre-existing gray wire on the second deck was used to reset the Teensy 3.5 used to control the VL531LX LIDAR sensors but since the Teensy 3.5 (and all but one of the VL53L1X sensors) was removed, the Gry wire is no longer used. Here’s the updated schematic:

2 Wheel Robot with Vision Processing, Part III

Leave a reply

Posted 28 June 2026

When I work on significant projects like the vision-enhanced robot project, I generally hold two different but related mental maps for the overall project.

One map describes the physical and/or logical entities that are needed for the overall project to succeed, such as wheel odometers, battery packs, power regulation/distribution, the OAKD-Lite camera, the pi5, wheel motors and drivers, etc.

The second mental map describes the software (here the term ‘software’ includes both the pi5 software and related teensy firmware) pieces needed to give the robot the ability to do what we want, primarily the enhanced navigation possible with vision processing via the OAKD-Lite camera and associated software. This mental map (at least for me) seems to be project oriented, where each project addresses different, mostly independent software capability implementations (Wifi_OTA, with its precursor projects ‘SerialPassthroughDemo’, Wifi_OTA_Demo, etc).

I tend to work on a big project like this from the top (system-view) and bottom (small sub-projects that will be later integrated into the overall project) at the same time. I have learned over the years that creating (and later modifying as needed) a clear top-down system architecture is absolutely crucial to improving the chances of getting someplace that looks like where you wanted to go. This systems architecture is the ‘aspirational view’ (to borrow a modern Elon-ism) of the project’s long-term goal. In the case of the vision-enhanced robot (VER), the goal is similar to the one for my 4-wheel robot, i.e. “Autonomous navigation around our home”. However, instead of ‘wall-following’ as the 4-wheel robot did, this project will utilize vision processing at the primary navigation technology.

Over the last few weeks, Grok Code and I have been working at the bottom of the systems architecture with things like getting OTA updates for Teensy firmware working, both via the PC -> Bluetooth -> HC-05 -> Teensy Serial channel and most recently, via the PC -> Wifi -> Pi5 -> Teensy Serial channel. After (mostly) getting the Wifi_OTA capability going, I decided it was time to stop and make sure we had a Git Repo structure consistent with the top-down view. After the requisite amount of fumbling around, we (me and Grok Code) came up with the following structure.

my_vision_robot/
├── .gitignore
├── README.md
├── docs/ ← Overall project documentation
│
├── hardware/ ← Schematics, BOMs, mechanical (future)
│
├── shared/ ← Code used by multiple projects
│ ├── firmware/ ← Shared Teensy code/libraries
│ └── software/ ← Shared Pi5 Python modules
│
├── software/
│ ├── SerialPassthroughDemo/
│ │ ├── README.md
│ │ ├── pi5/
│ │ ├── teensy/
│ │ └── docs/
│ │
│ ├── Wifi_OTA/
│ │ ├── Wifi_OTA.py
│ │ ├── README.md
│ │ ├── pi5/ (if needed later)
│ │ ├── teensy/
│ │ └── docs/
│ │
│ └── Vision_Navigation/ ← Future main vision project
│ ├── pi5/
│ ├── teensy/
│ └── docs/
│
├── tests/ ← System/integration tests
└── tools/ ← General one-off utilities

Now the challenge is to move all my sub-project files from our current quite-messy repo structure into this one. Standby!

07 July 2026 Update: Wrapping up the Wifi_OTA Demo project

This little project had more than its share of bumps and bruises, but I think Grok Code and I have finally got it done. The project has four major parts; three on my PC and one on the pi5.

  • The Wifi_OTA Visual Studio/Visual Micro project on my PC
  • A ‘board.txt’ file in the same folder as the Wifi_OTA project. This file tells VS what to do after the build step
  • A small Python script that copies the .HEX output from the compile to the ‘latest.hex’ file on the pi5
  • A Python program on the pi5 that watches for updates to ‘latest.hex’ and when one is detected, passes that along the the teensy on its Serial1 port

Here is the Wifi_OTA.ino file: All it does is blink the built-in LED a couple of times and then waits for a ‘U’ character to start the flash update process.

Here is the ‘board.txt’ file that calls the PostBuild.py program when an F5 debug compile is completed:

And here is the Python script that copies the .HEX output from the compiler over to ‘latest.hex’ on the pi5:

Here’s a short video showing the Wifi_OTA update process. The video starts just after I pressed F5 to start the debug compile on my PC. After about two seconds, the built-in LED on the Teensy 4.1 (lower-left foreground) goes OFF when the HEX file transfer starts. The file transfer takes about 30 sec, and then a few seconds after the file transfer finishes, the built-in LED on the Teensy 4.1 blinks twice and then stays ON, confirming that the update was successful.

A significant part of this little sub-project was getting the Git repository set up and running, on my PC, on the pi5, and on GitHub. The same folder structure is used in all three locations, but the pi5 side only updates entries in the ‘pi5’ subfolders, and the PC side only updates the Teensy firmware. When I do an update either on the PC or the pi5, I follow the same steps each time:

  • git pull origin main <<— synchs the local repo with the master on Github
  • git add -A <<– adds anything new to the local repo
  • git commit -m “put my update description here”
  • git push origin main <<– synchs the Github repo with the updated local repo.

    At this point I believe I have the basic infrastructure in place to proceed with the real project of adding vision-processing-based navigation capabilities to the robot
  • The OAKD-Lite camera is installed and confirmed working
  • The pi5 is installed and connected to the OAKD-Lite camera and via Serial1 to the Teensy4.1.
  • Teensy firmware can be updated via the new Wifi_OTA update channel
  • The Hall-effect wheel encoders are installed and confirmed working.
  • The next big step is to integrate the ROS (Robot Operating System) with the OAKD-Lite camera and the Teensy.

Stay Tuned!

Teensy Firmware OTA Update Via SSH to Pi5

Leave a reply

Posted 21 June 2026

After getting OTA via Bluetooth to the onboard HC-05 going for the 2-wheel robot, I had an epiphany; For vision processing the 2-wheel robot uses an on-board Raspberry Pi5 with a Wi-Fi connection to my local network (and thence to my PC), so why use the HC-05 link at all? The Wi-Fi connection is much more robust than the BT/HC-05 link and is available throughout the house. The pi5 has a serial port, so in theory I could simply write a small python script to pipe characters back and forth between its Wi-Fi port and its serial port, just as the HC-05 does between its BT port and its serial port. How hard could it be?

Grok Code and I have been working on this issue for a while now and have gotten to the point where we can transfer the .HEX file from the pi5 to the Teensy once, but not multiple times. This indicates that the firmware update did not happen correctly. Also, we haven’t yet figured out how to automatically transfer the HEX file resulting from a Visual Studio compile to the pi5 so that it can be passed to the Teensy via the pi5’s serial port so we are bypassing this step by using SCP (or a copy/paste using VS Code) to create a duplicate of the HEX file on the pi5; then all the pi5 script has to do is pass lines from the local HEX file to the Teensy via serial.

Grok Code and I have been trying to troubleshoot this problem, and we don’t seem to be getting anywhere. Grok does not really know how to troubleshoot in an organized manner – it is more of a ‘random walk’ process. This post is intended to document my own troubleshooting efforts.

First, what is the basic problem? The basic problem is that multiple transfers of a HEX firmware file to the Teensy using the established BT/HC-05/Serial2 succeed, but the same process using the Wi-Fi/pi5/Serial1 link appears to succeed the first time but fails on the second attempt. Since the firmware HEX files in the two cases are identical, the problem must be somewhere in the pi5 script, either in the way lines are read from the local HEX file or in the way lines are transferred to the Teensy.

A basic assumption in the above is that the HEX file transferred to the Teensy via BT/HC-05 and the HEX file transferred to the Teensy via Wi-Fi/Pi5 are identical, so I decided to start there. Are they really identical?

  • Compiled firmware on VS, copy/pasted (using VS Code) from “C:\Users\Frank\Documents\Arduino\Wifi_OTA_Demo\obj\x64\Debug\Wifi_OTA_Demo.hex” to “/home/pi/my_vision_robot/tests/Wifi_OTA_Demo/Wifi_OTA_Demo.hex”. Then I copy/pasted from the pi5 file to notepad++ and compared with the original – they matched perfectly.
  • I modified FxUtil.cpp’s update_firmware() to add the line “out->println(line);” then updated Teensy firmware using USB connector to establish ‘known-good’ baseline. Then used pi5 script to transfer its local copy of the firmware to the Teensy, logging the transfer via VS serial monitor. The file as logged going into the Teensy and the source file on the pi5 also match perfectly. This pretty much eliminates a corrupted file transfer as the source of the problem.
  • Then I performed the same procedure except using the BT/HC-05 channel instead of the Wifi/Pi5 channel.

Here’s the Wifi_OTA_Demo.ino file used to run the above tests:

25 June 2026 Update:

Grok Code and finally managed to get the Teensy OTA update via Pi5/Serial1 working. Here is the final Python script on the Pi5:

And here is the Teensy sketch used for the test:

To verify that the OTA update code performed properly, I ran the update three times in a row. The first time replaces whatever sketch was on the Teensy with my test sketch (that also includes the code that supports further updates), and the second and third updates confirm that the first (and the second) updates contained the crucial update support code.

At this point the ‘Wifi_OTA_Demo’ project is pretty much finished. The only step remaining is to fully automate the process.

27 June 2026 Update:

Now I have the update process updated to the point where I can press ‘F5’ in Visual Studio in an OTA-equipped Teensy project and have the resulting .hex file automatically copied over to the pi5. Here are the relevant files:

board.txt:

Updated 06/27/26 Post-Build: Copy .hex to Pi5

PostBuild_OTA.py:

The next step is to put these two steps (copy the .hex file to the pi5, and then launch the update code that xfers the .hex file to the Teensy) together into one seamless automated process.

08 August 2026 Update:

I recently got my 4-wheel robot going again and moved the Raspberry Pi5/OAKD-Lite over to it from the 2-wheel robot, and ported my WallE3_Git.ino program to it as well. Due to some changes made to file locations on both my PC and on the Pi5, some changes to the OTA-related files were necessary as well. Here are the updated files:

Board.txt (lives in the same folder as the project & .ino file):

C:\Users\Frank\Documents\Robot_Projects\my_vision_robot\software\Wifi_OTA\teensy\Wifi_OTA\PostBuild_OTA.py:

C:\Users\Frank\Documents\Robot_Projects\my_vision_robot\software\Wifi_OTA\pi5\Wifi_OTA.py:

These files are also saved on my Github site in the my_vision_robot repo.

These updates went very smoothly, all things considered. The only minor hitch in the get-along was getting the new .hex file copied over from my PC to the Pi5 via SCP without having to enter the Pi5 password. Here’s the relevant material from Grok:

The password prompt

That’s expected if SSH key authentication isn’t set up (or the key isn’t loaded). scp is falling back to password auth, which blocks a fully automatic F5 experience.

Fix (one-time setup on the PC):

  1. Make sure you have an SSH key pair:

Bash

# in PowerShell or Git Bash

ls ~/.ssh/id_rsa.pub

# or

ls ~/.ssh/id_ed25519.pub

  1. Copy the public key to the Pi (if not already done):

Bash

ssh-copy-id pi@RobotPi5

(or manually append the .pub contents to ~/.ssh/authorized_keys on the Pi)

  1. Test that it works without a password:

Bash

scp some_small_file pi@RobotPi5:~/my_vision_robot/firmware/test.txt

After that, the post-build scp should run silently. (this still failed):

No SSH key exists yet. Generate one (ed25519 is preferred):

In PowerShell:

PowerShell

ssh-keygen -t ed25519 -C “frank@vision-robot”

  • Press Enter to accept the default file location (C:\Users\Frank\.ssh\id_ed25519)
  • You can set a passphrase or leave it empty (empty = fully automatic, no prompts)

Then copy the public key to the Pi:

PowerShell

type $env:USERPROFILE\.ssh\id_ed25519.pub | ssh pi@RobotPi5 “mkdir -p ~/.ssh && cat >> ~/.ssh/authorized_keys”

(It will ask for the Pi password one last time.)

After that, test:

PowerShell

scp $env:USERPROFILE\.ssh\id_ed25519.pub pi@RobotPi5:~/test_key.txt

If that works without asking for a password, F5 will also be password-free.

2 Wheel Robot with Vision Processing, Part II

Leave a reply

This is the second of (hopefully) many posts on my project to add modern vision processing to my autonomous wall-following robot. The first post is here.

Lots of changes since my first post. I discovered that my 8.4-to-5V LDO regulator board wouldn’t reliably drive the Raspberry Pi5, so I had Grok look around for other options. He found a step-down converter module at Pololu advertising 85+% efficiency and a much cleaner output. I have it on order so we’ll see.

I also struggled to get the Luxonis OAK-D Lite stereo camera working on my Pi5/Ubuntu 24.04LTS setup. Previously we had gotten it to work with the Pi5 running the Raspberry OS, but getting it to work with the Ubuntu OS was a lot more challenging. This effort also ran afoul of Grok’s complete inability to realize that it is in a hole and to stop digging. We went through dozens of Python scripts designed to get the camera to connect and show some data (I was connecting to the RPi5 via SSH from my windows box, so showing images wasn’t possible), and they all failed due to one subtle problem or another. After several days of getting nowhere I finally called a halt, took a couple of days off, and came back determined to start over from first principals. Instead of using Grok, I started from scratch with some web searches to find other successful implementations of The OAK-D Lite camera. At the Luxonis ‘Documentation’ site I found this page describing a viewer for the OAK-D Lite (and other) cameras. The OAK Viewer is available for windows and *nix OS, so I decided to start by trying to get images from the camera using the Windows version to bypass all the annoyances associated with peripheral handling in Linux. This turned out to be pretty much plug-and-play, and immediately the OAK-D camera showed up in the list of available devices. When I clicked on ‘Connect’ instead of connecting immediately the app immediately started measuring the available bandwidth of the USB connection as shown below.

After several USB connect/disconnect cycles, I got this display:

Oops! I hadn’t even considered the USB cable/connector bandwidth issue – and neither had Grok. For convenience I had plugged the camera cable into my USB hub, which is definitely not ‘super speed’ whatever the heck that is. After some cable and connector switching, I found that a heavy-duty Type-C cable connected directly to a Type-C connector on my Dell XP15-9530 laptop allowed the bandwidth check to succeed, and now I got some images showing up on my Windows 11 display – yay!

OAK-D Lite images. Depth pseudo-color on left, raw RGB image on right

So the moral of this story is – the Grok path was never going to work because Grok never considered that cable/usb connector bandwidth might be an issue. By going back to ‘first principals’ and taking the simplest possible path to a working camera/display configuration with a known-good Windows 11 app, I was able to immediately identify a completely unknown (to me and to Grok) – but fatal – stumbling block – USB cable/connector bandwidth. Grok has no sense of time, so every iteration was just like a puppy chasing a dog – willing to chase that ball an infinite number of times without ever thinking about the fact that ‘chasing the ball’ and ‘progress toward the goal’ aren’t necessarily the same thing. It took a mere mortal like me to say “whoa – this isn’t getting us anywhere – maybe a different approach?”

Now that I had demonstrated that the OAK-D Lite camera and the proper cable/connector combination worked – at least on Windows 11, I had a ‘known-good baseline’ that I could always retreat to, I started working on getting the OAK-D Lite camera working on the RPi5/Ubuntu camera with the same OAK Viewer application (but in the Linux flavor).

This turned out to be another maze to navigate. The Luxonis site has detailed instructions for the Linux version of the viewer, but it involves installing from a *.deb package, which unfortunately is targeted at the amd64 64-bit chip ecology – but the RPi5 uses arm64 – a different animal entirely. When I tried to install the ‘viewer.deb’ package, I got the following errors:

The following packages have unmet dependencies: oak-viewer:amd64 : Depends: libgtk-3-0:amd64 but it is not installable Depends: libnotify4:amd64 but it is not installable Depends: libnss3:amd64 but it is not installable Depends: libatspi2.0-0:amd64 but it is not installable Depends: libdrm2:amd64 but it is not installable Depends: libgbm1:amd64 but it is not installable Depends: libxcb-dri3-0:amd64 but it is not installable Recommends: pulseaudio:amd64 or libasound2:amd64 but it is not installable

It was at this point that I re-engaged Grok and started to make real progress. Grok immediately identified the Pi5/Ubuntu-compatible DepthAI Python library as the way to go and guided me through the installation process. Fortunately, this had a happy ending, even though there were several ‘gotchas’ along the road. However, since I knew for a fact that the hardware (and USB cable) were ‘known good’ elements due to my Windows 11 work, I was pretty sure any detours were software-only. After working my way through the various twists and turns with Grok’s help, we got to here – success!

Initial images captured by the OAK-D Lite camera running on my RPi5 with the Linux Ubuntu OS

Getting from my easy Windows 11 camera demo to the RPi5/Ubuntu camera demo would have been improbable if not impossible for me to do without Grok’s help. I might have gotten there, but it would have involved days/weeks of web searches and forum posts at the very least. I believe this is where Grok really shines – a definite problem with a definite end, with very few (none in my case) outside corrupting factors like the USB bandwidth/cable issue.

Interestingly, after getting the Pi5/Ubuntu/OAK-D Lite combination working, I asked Grok to help me find an easier way to take screen shots on the Pi5, and Grok obliged by offering the ‘Flameshot’ app as a substitute for the built-in Gnome keystroke shortcuts. And then we went down another rabbit-hole, and I ended up wasting an hour or so trying to get Flameshot and Gnome to work and play well together, only to wind up removing Flameshot and learning how to better use the Gnome built-in shortcuts.

So Grok is definitely a mixed blessing, and I cannot imagine how a younger less-experienced engineer would do without the (literally) lifetime’s worth of experience I have in troubleshooting hardware/software systems. When I was that young less-experienced engineer half a century ago I was trying to troubleshoot a RF EMI problem with a small electronics device made by Motorola. Eventually my supervisor suggested that I travel to Motorola and work with their engineers to figure out the problem. I did, and over the space of two days a very experienced Motorola engineer taught me the ‘divide and conquer’ method of troubleshooting that I use to this day. When Grok inevitably goes down a rabbit-hole with this young engineer in tow, who’s going to be there to throw them a life-line?

A Status Byte/Word for Wall-E3?

Leave a reply

Posted 25 May 2024

Lately I have been working (or re-working) on Wall-E3’s ‘MoveToDesiredFrontDistCm()’ and ‘MoveToDesiredRearDistCm()’ capability. As I worked on these functions, I realized that the failure modes weren’t particularly straightforward. Both the ‘Front’ and ‘Rear’ functions can direct forward or rearward movement to achieve the desired distance, so in theory either function could experience a ‘stuck’ condition in either direction – ugh! In addition, I’m not sure what to do if either function experiences a ‘front obstacle’, ‘front offset distance’ or ‘rear obstacle’ condition.

Currently I have a set of enums that describe expected anomaly conditions, as shown below.

And, in the current version of the ‘MoveTo..’ functions, the above are used as exit conditions from the movement loop, like the following snippet:

gl_LastAnomalyCode is updated in the ‘UpdateAllEnvironmentParameters()’ function as shown below

This function retrieves all the current distance readings, the current heading, and the current reading from the charger IR beam detection sensor. Then it assigns one of the ANOMALY enum values to gl_LastAnomalyCode based on one or more direct or derived sensor values. For instance, the ‘STUCK_AHEAD’ or ‘STUCK_BEHIND’ codes are assigned based on the value computed for the ‘front’ or ‘rear’ variance calculations.

The problem (or at least what I *think* is a problem) is that gl_LastAnomalyCode can only contain one value, and in the case of more than one ‘anomaly’ existing at the same time, the value assigned to gl_LastAnomalyCode is the one encountered first, as a result of the ‘else’ – ‘else if’ structure.

So, I started thinking that maybe I should instead implement a status byte or status word with bit positions assigned to possible error/anomaly conditions. Instead of an ‘else’ – ‘else if’ structure, the ‘UpdateAllEnvironmentParameters()’ would simply update each bit in the status object independently of all the others. Then functions whose behavior gets modified by one or more anomalies can consult the status object to determine what to do.

I think this approach is much more robust and generalized than the current ‘only one anomaly type at a time’ approach, but it is also much more complicated, in at least three different ways:

  • Managing updates to the status object would require ‘bit diddling’ operations for clearing or setting individual bits.
  • Deciding what to do could become much more complicated. Currently the ‘gl_LastAnomalyCode’ can contain only one value, so any behavior modification decisions are basically CASE blocks. With a status object behavior could depend on more than one parameter.
  • sdaf;ljsadkf

I’m really intrigued by the power and generality of the status byte/word idea, but more than a little worried about ripping out the ANOMALY_CODE stuff and replacing it with status. Maybe I’ll just add the status byte/word stuff in parallel with the current setup and see how it goes.

Stay Tuned,

Frank

The Robot Rises Again – Adding Vision Processing

Leave a reply

Posted 04 April 2026

Well today I exceeded my boredom threshold, so something had to give. I worked out on my basketball court for an hour, flew a glider race in the Condor3 Soaring Flight Simulator, played an online bridge tournament on BBO, and I still hadn’t used up half the day. My workbench is empty, my two 3D printers are silent, and I can’t think of a thing to do. However, while I paced around with my hands in my pockets feeling sorry for myself, I caught sight of Wall-E3, my autonomous wall-following robot gathering dust in its charging cradle in the corner. That robot has gone through a number of iterations, starting with this post in early 2015 and ending with this post in late 2024. The goal of this almost decade-long project was to create a robot that could autonomously navigate around our house, scaring cats and humans alike and recharging itself whenever it got hungry. It did a really good job at the scaring part but unfortunately, I never got it to the point where it wouldn’t get stuck in one of our junk-filled guest bedrooms; close, but no cigar 😒.

Looking at my robot, I realized that in the intervening decade, a lot had changed in the indoor navigation realm, in particular the ability to exploit video camera images for navigation in reasonably constrained environments. So, I decided to revisit my robot project to see if I could utilize the new technology to get closer to my goal of true autonomous navigation.

Part of my interest in starting a new run at the household navigation project has been my positive experience over the last year with Grok, X’s AI. Grok, despite some real issues that need to be kept in mind, is a GREAT research assistant. In the past, I might spend most of a week working my way through internet links and going down various rabbit holes trying to solve a subtle software or hardware problem but Grok can do the same thing in a few seconds. At this point I knew next to nothing about vision-based navigation systems, but I knew for sure that Grok would be able to distill the netiverse down to reasonably digestible chunks pretty quickly.

I started with the following prompt for Grok:

In less than thirty seconds, Grok produced the following:

Absolutely—switching to vision processing is a smart move for handling those tricky “special cases” where pure distance sensors (like your LIDAR + gyro combo) fall short. Cameras give you way more information: color, texture, edges, and even semantic understanding (e.g., “that’s a chair leg” vs. just “something 30cm away”). This helps with low obstacles, reflective surfaces, dynamic items, or cluttered home environments that confuse LIDAR.

Since you already have a solid 6DOF gyro (IMU), you can fuse it with vision for excellent Visual-Inertial Odometry (VIO) or Visual SLAM (vSLAM). This is basically what modern robot vacuums do (vSLAM), but fully customizable for your wheeled robot.

Quick Reality Check Before Diving InVision isn’t perfect either:

  • Sensitive to lighting changes (solution: good indoor lights or IR-capable cameras).
  • Needs decent compute (Raspberry Pi 5 or equivalent works; older Pis may struggle with heavy SLAM).
  • Depth from vision is usually “good enough” indoors but not as precise as LIDAR in perfect conditions.

Hybrid tip: You can keep your existing LIDAR/gyro as a backup while testing vision.Recommended Hardware to Get Started (2026-Friendly Options)You’ll replace/add a camera that provides both color and depth (RGB-D) or stereo for 3D perception. Top practical picks for small wheeled robots:

  1. Best overall: Luxonis OAK-D series (OAK-D Lite or Pro)
  2. Budget depth option: Arducam T2 RGBD ToF Camera (~$100)
  3. Classic: Intel RealSense D435/D455 (if you can find one) or similar RGB-D.

Mount the camera forward-facing (maybe add a second for 360° if budget allows). Keep your gyro—it will make odometry rock-solid when fused.What’s your current brain? (Raspberry Pi 4/5, Jetson, Arduino + companion computer, etc.?) Budget for the camera? That’ll let me refine this exactly.Software Stack – The Modern Way (ROS2 Recommended). The gold standard for this is ROS 2 (Robot Operating System) + Nav2 navigation stack. It handles mapping, localization, path planning, and obstacle avoidance out of the box.

Core vision libraries:

  • OpenCV → Basic start (edge detection, simple avoidance).
  • RTAB-Map or ORB-SLAM3 → Full visual SLAM (builds a 3D map while localizing).
  • VINS-Fusion or OpenVINS → Perfect VIO that fuses your existing 6DOF gyro with camera data (highly accurate odometry).

All run great on Pi 5 with Ubuntu 24.04 + ROS 2 Jazzy (or newer).

This was a lot like drinking from a firehose, but within an hour or so I had a Raspberry Pi 5 kit and two different cameras (a cheap one arriving tomorrow, and a not-so-cheap one arriving in another week or so) on order. In the meantime I asked Grok to hunt up some tutorials and examples so I could start getting up to speed on all things ROS 2 Jazzy Robot Operating System) and SLAM (Simultaneous Localization and Mapping).

Hopefully in the next week or so I will have some hardware & software to play with, and maybe make a step or two in the direction of upgrading WallE3 to WallE4.

08 April 2026 Update:

Worked with Grok to start adding vision capability to my autonomous 4-wheel wall-tracking robot. The plan is to use a Luxonis OAK-D-Lite Fixed-Focus camera and a Raspberry Pi5 running Ubuntu 24.04 and ROS (Robot Operating System) to add vision processing to the robot. Because there was a long lead time for the Luxonis camera, we started with a cheaper (and faster delivery) alternative, the Arducam ToF Camera. Grok insisted the Arducam would work as a near-term solution until the Luxonis camera arrived, but it didn’t work out quite that way. The Arducam worked OK with the default Pi5 OS without ROS, but when we tried to add ROS and the drivers for the Arducam, we ran into a dead end. Then Grok was *sure* that we could simply replace the Pi5 OS with Ubuntu 24.04 LTS and everything would work – – – NOT! So now I’m waiting for the Luxonis so we can move forward again.

When I braced Grok about the readily apparent difference between what Grok thought was going to work fine and the actual result, I asked Grok to search for ANY successful implementation using Pi5, ROS and Arducam, and Grok could not come up with a single confirmed successful implementation. This is a real problem with Grok, one that the devs should be concerned about, but nobody seems to care.

Grok now uses several ‘agents’ to independently research user questions, and the eventual answer is a consensus (I think) of their findings. I have suggested that at least one of the agents should be dedicated to attempting to falsify the results of the others, but I have seen nothing to indicate this has actually gotten through to the devs. In this case, all the ‘red team’ agent would have to do is perform the above search for successful implementations and come up with ZERO, thereby making it obvious that starting with the Arducam instead of waiting for the Luxonis was probably not going to end well. On a positive note, I asked Grok to do the same search with the Luxonis instead of the Arducam, and it came back with several confirmed successful implementations.

Until Grok implements the ‘red team’ facility, users need to be aware that Grok will quite happily drive a user off a cliff, insisting all the way down that “this next fix will surely solve the problem”. Has anyone else had his happen?

16 April 2026 Update:

A lot has happened since my last post on this subject. Working with Grok, we finally got the OAK-D camera working on the Pi5, with real-time imagery displayed on a monitor connected to the Pi5. Of course, this is a LOOOONG way from actually implementing visual navigation on a robot, but ya gotta start somewhere!

When considering how to move the Pi5 and Oak-D camera setup onto the robot, I decided to refresh my old 2-wheel (plus castering wheel) robot rather than trying to shoehorn the Pi5 and camera setup onto my 4-wheel robot. The 2-wheel robot already as a set of nice wheel motors, a pair of DRV8871 motor drivers and a battery/charger setup, and it isn’t being used for anything else at the moment. So, I stripped off the Uno Mega 2560 controller, installed the Pi5 and the camera at one end, and a Teensy 4.1 MCU on the other. I also installed an 8V-to-5V LDO voltage regulator that I had hanging around from a previous project. Here are some photos

Then I started working on the idea of installing magnets on the wheels and Hall-effect sensors on the chassis to produce wheel rotation rate information to integrate with vision processing. Based on a conversation with Grok, I ordered some A3144 Hall-effect sensors from Amazon. When they came in, I implemented a small plugboard circuit to test the sensor, as shown in the following short video:

After I got this working, I created a printed magnet carrier for the wheels, and a small perfboard circuit mount for the sensor. I tested the setup by running the small motor test program Grok wrote for the Teensy 4.1, and the results are shown in the following video:

LED illuminates when the sensor is triggered by a wheel magnet. Scope in the background shows the detection waveform

Here’s a scope trace grab of a typical half-speed wheel motor sequence:

From the above trace, the measured frequency is 4.823Hz. There are four magnets, which implies that the wheel is turning at about 1.2RPS, or about 72RPM. The wheel diameter is about 67mm, which gives a wheel circumference of about 21cm. At the 1.2 RPS rate, this works out to about 0.24m/s.

Of course I’m not anywhere near done yet, as I need two sensors per wheel to be able to determine rotation direction so three more sensor circuits, and a second wheel magnet carrier and magnets for the other wheel. Still though, it’s a good start!

22 April 2026 Update:

I finally got all four A3144 Hall-effect sensor modules and the second wheel magnet carrier mounted and tested. As shown in the following photos, The Hall-effect sensor modules are mounted approximately 90 degrees from each other to provide effective direction sensing.

23 April 2026 Update:

After finishing the Hall-effect sensor project, I worked on implementing a wireless serial connection to the robot for remote status monitoring and for remote ‘Over The Air’ (OTA) programming. I have had this capability for years on the 4-wheel robot and it really paid off, so I didn’t want to get too far down the road with the 2-wheel version without having it. As Grok pointed out, I could use the wireless ethernet capability of the Raspberry Pi5 for this; wire a serial port on the Pi to a hardware serial port on the Teensy 4.1 and send updated .HEX files to the Teensy that way. However, I decided not to do this for three reasons; first and foremost, I disliked the idea of tying Teensy 4.1 program updates to a working Pi5, as that added another huge set of variables; secondly, the Pi5 draws a LOT of power and so I don’t want to have it running until absolutely required, and thirdly I completely solved the Teensy 3x/4x OTA problem some five years back (see this post, this post and this post) and can readily port the solution to the current configuration.

I mounted one of my spare HC-05 Bluetooth Serial modules to the back of my new camera support structure with hot glue and connected it to Serial2 (pins 7 & 8) on the Teensy 4.1. After the usual cussing and screwups getting the Tx & Rx lines connected properly, I was able to demonstrate simple pass-through serial-to-serial capability, so then I moved on to getting OTA working. First I created an Arduino project called ‘2WheelRobot_HC05_OTA1’. Then I cloned Joe Pasquariello’s FlasherX repository to my PC and copied the latest versions of FlashTxx.h/.cpp, FxUtil.h/.cpp, and FlasherTxx.ino from my local repo to the local folder of that project. Next I ported the ‘CheckForUserInput()’ function from one of my 4Wheel robot projects into the OTA1 project, removing everything but the ‘U’ (Update Firmware) case. After the usual number of mistakes and cussing, I got this working to the point where I could manually send a new .HEX file to the Teensy 4.1 using the HC-05 Bluetooth serial link and TerraTerm, as shown in the following screengrab:

The next step is to automate this procedure as I did back in 2021. I should be able to use the same ‘board.txt’ and ‘TeensyOTA1.ttl’ files from back then. At this point I decided to try my ‘symlink’ trick instead of copying the files directly. Here is the relevant text from ‘Symbolic Link HOWTO.txt’:

//04/19/24 Arduino projects now use an extra folder layer, so instead of

mklink C:\Users\Frank\Documents\Arduino\230918_WallE3_MoveTo_Test_V1\TeensyOTA1.ttl “C:\Users\Frank\Documents\Arduino\Robot Common Files\TeensyOTA1.ttl”
mklink C:\Users\Frank\Documents\Arduino\230918_WallE3_MoveTo_Test_V1\board.txt “C:\Users\Frank\Documents\Arduino\Robot Common Files\board.txt”

The commands need to be:

mklink C:\Users\Frank\Documents\Arduino\230918_WallE3_MoveTo_Test_V1\230918_WallE3_MoveTo_Test_V1\TeensyOTA1.ttl “C:\Users\Frank\Documents\Arduino\Robot Common Files\TeensyOTA1.ttl”
mklink C:\Users\Frank\Documents\Arduino\230918_WallE3_MoveTo_Test_V1\230918_WallE3_MoveTo_Test_V1\board.txt “C:\Users\Frank\Documents\Arduino\Robot Common Files\board.txt”

I opened a command prompt and pasted the first mklink command in, and then edited it to point to my ‘2WheelRobot_HC05_OTA1’ folder. When I was done, I had this command line:

After executing these commands, I confirmed that the ‘board.txt’ and ‘TeensyOTA1.ttl’ files now appear in the ‘C:\Users\Frank\Documents\Arduino\2WheelRobot_HC05_OTA1\2WheelRobot_HC05_OTA1’ folder – yay!

To confirm proper operation, I changed the ‘LED_ONOFF_MSEC’ parameter from 250 to 1000 in the .ino file, changed the COM port to COM12 and hit F5.

Rats! Close – but no Cigar! It started off OK and got to the point where TeraTerm should send the HEX file, and then I got this error message:

Hmm, turns out it actually worked – now the LED is blinking at 1000mSec ON, 1000mSec OFF, instead of 250 ON/OFF. So I tried again and this time I got “unable to connect to Teensy on COM12

25 April 2026 Update:

With a lot of help from Grok, I finally got to the point where I can now do ‘over-the-air’ (OTA) program updates to my 2-wheel robot via the onboard HC-05 BT serial port connected to the Teensy 4.1 Serial2 port (pins 7 & 8). For all the details, see the ’25 April 2026 Update’ section in this post.

At this point in the project, I have a 2 wheel robot with the following characteristics:

  • Teensy 4.1 processor and HC-05 BT Serial (Serial2) allowing OTA program updates
  • Dual DRV8871 motor controllers
  • 7.4V (dual Lithium-Oxide) battery pack with 5V LDO voltage regulator
  • Raspberry Pi5 micro-computer with ROS and other relevant software installed
  • Luxonis OAK-D Lite camera connected to the Pi5 and functionally tested
  • 4ea A3144 Hall-effect sensors mounted in physically quadrature pairs on each wheel, opposite a 4-magnet disc for speed & direction sensing.

At the moment the robot has no distance sensing capability, although the plan is to mount a pair of VL53L1X ToF sensors for side-distance monitoring.

the Pi5 and camera are not yet connected, as their current draw is significant and may require an upgraded battery and regulator for practical use. Here are some photos of the current robot configuration:

Here is the current system schematic. Note that theRaspberry Pi5, Luxonis OAK-D camera and MPU6050 6DoF gyro have not yet been incorporated into the system.

And here is the complete Teensy 4.1 sketch that was used to verify OTA programming capabilities.

27 April 2026 Update:

I ran into a problem with the way the ‘quadrature’ Hall-effect sensor module was mounted on the wheel motors. I had simply hot-glued them to the motor casing, but after a day or so the module fell off, so I needed something a little more permanent.

I designed a printed piece to snap-fit onto the motor body, with a slot in the top for the Hall-effect sensor perfboard, as shown below:

Here is a photo showing the Hall-effect sensor modules mounted on the underside of the robot.

02 May 2026 Update:

As it turns out, the above ‘physical quadrature’ arrangement was optimally bad, because it does not provide the 00 01 10 11 activation sequence required for accurate speed and direction sensing. After figuring this out, I wound up manually adjusting the position of one of the sensor modules to get the proper sequence, and then hot gluing the module down at that point. The following photo shows the somewhat messy current arrangement.

My plan is to design another version of the motor mount for a more permanent installation.

I also spent some time neatening up the topside of the robot and updating the schematic, as shown in the following photos.

04 May 2026 Update:

Grok and I worked together to remove a lot of unneeded PID code and add forward & reverse tick-count based motion control. Now the robot will move forward or backward a specified distance with a command such as “D, 0.3” or “D, -0.5” (meters). It will also stop in response to an ‘S’ command. Here’s the full code:

I also had Grok generate a Python script to automate the task of creating symlinks to my custom ‘board.txt’ and ‘TeensyOTA1.ttl’ files necessary for OTA updates. Now I can double-click a desktop shortcut, point to a folder, and have the above two files appear magically as symlinks to the files in my new “C:\Users\Frank\Documents\Arduino\Robot Common Files 2026” folder. This is wonderful time-saver and I only wish I had done this earlier. Here’s the code:

05 May 2026 Update:

I added a tick-count reset ‘R/r’ operation to the available commands in the ‘CheckForUserInput() function. At this point the robot will go forwards and backwards by a set distance (tick count), will stop on command, and the tick count can be reset to zero at any time. Here is the ‘final’ code:

The next big step in the Teensy code will be to integrate the MPU6050 6DoF gyro into the code so that the robot can make accurate PID-controlled specified-angle turns

Stay tuned,

Frank

Return of the Robot

Leave a reply

Posted 14 October 2024

It’s been almost four months since I did anything with Wall-E3, my autonomous wall-following robot. I’ve been busy with building a new 3D printer (Prusa Mk4) quarrelling with (and losing to) my other 3D printer (Flashforge Creator Pro 2), and some other stuff, but I’m now between projects so I want to spend some more time with Wall-E3. I ran a couple of field tests on my normal home track, and saw that the robot is still having trouble with managing transitions from one wall to another, especially at the end of the kitchen counter (the ‘B’ position shown in the diagram in this post).

Looking through the telemetry log, I was struck by the fact that it appears that the HandleAnomalousConditions() function always called with ANOMALY_CODE == ANOMALY_NONE. Looking through the code, I’m not quite sure where this happens. There is code in UpdateAllEnvironmentParameters(), but it shouldn’t execute unless all the other ‘elseif’s fail. Looking further, I found this code in the HandleAnomalousConditions() function:

However, it doesn’t appear that HandleExcessSteervalCase() is being called at all – hmm.

20 October 2024 Update:

So I think I figured some of this out. Here’s the relevant code in loop():

So the program simply loops through UpdateAllEnvironmentParameters() and HandleAnomalousConditions. The Update function retrieves all sensor information and uses it to update the global variable gl_LastAnomalyCode. HandleAnomalousConditions then uses the value of gl_LastAnomalyCode in a CASE statement to figure out what to do. Here’s the relevant code from HandleAnomalousConditions

The problem I was seeing was, HandleAnomalousConditions() was being called each time, but the ANOMALY_EXCESS_STEER_VAL case was never executed. Somehow, the anomaly code was being changed to ANOMALY_NONE before the call to HandleAnomalousConditions().

I think I finally figured out what was happening. The very first time through loop(), UpdateAllEnvironmentParameters() is called and (normally) sets gl_LastAnomalyCode to ANOMALY_NONE. Then HandleAnomalousConditions() is called and the ANOMALY_NONE case executes. This launches either the TrackRight or TrackLeft functions, which have their own internal loop that doesn’t exit until a non-NONE anomaly is detected. When this happens, the tracking loop exits, but because it started in the ANOMALY_NONE case section of HandleAnomalousConditions(), the next instruction to be executed is the one immediately after HandleAnomalousConditions() exits! The next relevant instruction is the call to UpdateAllEnvironmentParameters() at the top of loop(), which can (and apparently does) modify gl_LastAnomalyCode from ANOMALY_EXCESS_STEER_VAL to ANOMALY_NONE, which means the ANOMALY_EXCESS_STEER_VAL case is never executed.

So, it is critical that nothing changes gl_LastAnomalyCode between HandleAnomalousConditions() calls. As it turns out, the fix was simply to remove the call to HandleAnomalousConditions() at the top of loop(), resulting in the following in loop():

This works because all functions that contain a local loop (like TrackLeft/RightWall()) call UpdateAllEnvironmentParameters() each time through their loop, and exit when a non-NONE anomaly code is detected. With the removal of the call to UpdateAllEnvironmentParameters() in loop(), the next call to HandleAnomalousConditions() ‘sees’ the correct value in gl_LastAnomalyCode.

I made this change and made another run, with the following telemetry output:

In the above telemetry, the significant points are:

  • The first pass through HandleAnomalousConditions(NEITHER) ANOMALY_NONE CASE decides which wall to track and selects TrackLeftWallOffset()
  • Tracking starts at 0.7Sec and ends at 3.0Sec when an EXCESS_STEER_VAL anomaly is detected.
  • In HandleAnomalousConditions(LEFT) with last anomaly code = EXCESS_STEER_VAL shows that the gl_LastAnomalyCode has not been changed
  • In HandleAnomalousConditions(LEFT) ANOMALY_EXCESS_STEER_VAL case shows that the proper case section is executing.
  • HandleExcessSteervalCase(LEFT) open doorway block shows that the appropriate handler function is launched.
  • Ultimately this results in the right wall being captured and tracked (the run was terminated just before the robot actually started tracking the righthand wall).

WallE3 Doesn’t Like Reflective Surfaces

Leave a reply

Posted 08 December 2023

WallE3 went with us last month when we travelled to St. Louis for Thanksgiving with family, and I showed off his autonomous wall following skills. WallE3 actually did great for quite a while – that is until he found himself staring at the side of a floor-mounted wine cooler (wine ‘safe’?). As can be seen in the following short video, WallE3 fell in love with the cooler, and showed his love by repeatedly head-butting it – oops!

After looking at the telemetry data for the run, I saw that WallE3 was measuring much larger front distances – like several hundred centimeters – when it was only a few centimeters from the object. It appears he was backing up to a defined front distance in response to a ‘WALL_OFFSET_DISTANCE_AHEAD’ anomaly, but somehow convinced himself that instead of 20cm from the wall, he was actually more like 100cm away. Of course, since he wanted to be at 30cm (the desired wall offset distance), he drove forward to lessen the distance, thereby bonking into the wall. Then, when he hit the wall, the front LIDAR line of sight geometry changed enough to produce a true measurement of just a few centimeters, which then sent WallE3 running backwards to open up the distance. Lather, rinse, repeat. Here’s an Excel plot of a representative (but not exact – I somehow lost the actual telemetry data for this run).

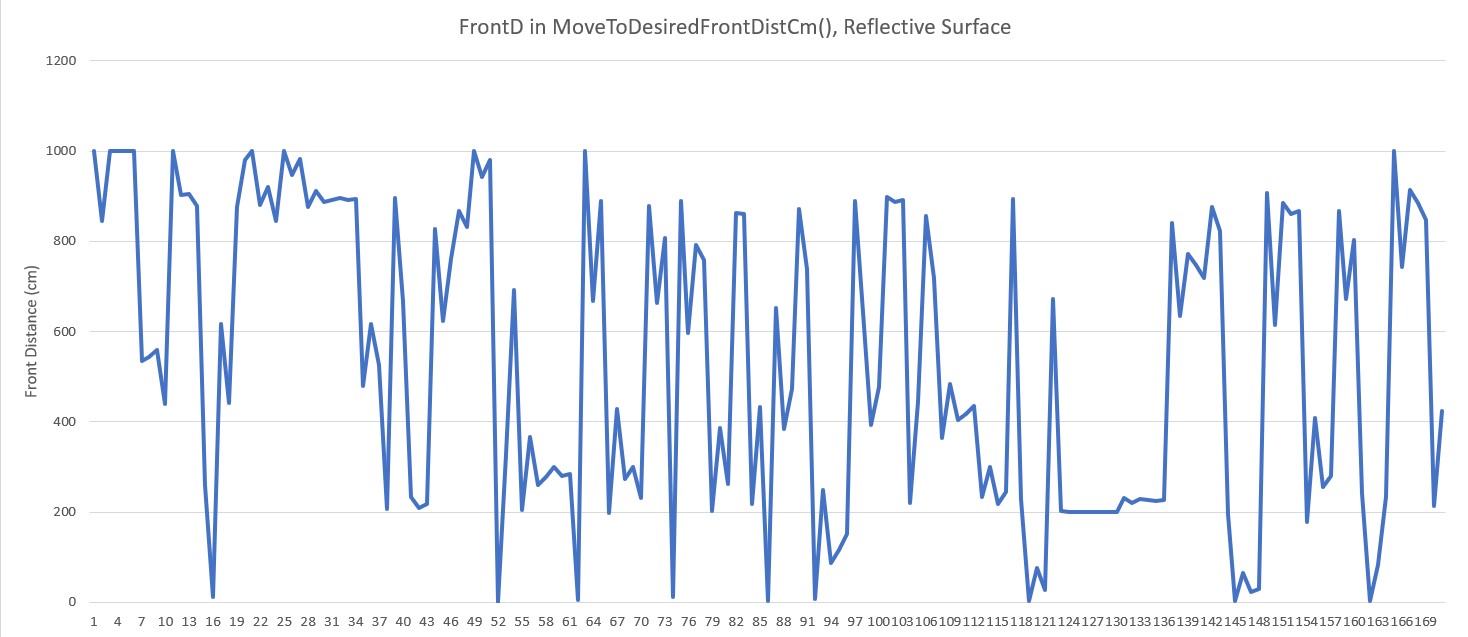

Representative reflective surface ‘headbutt’ telemetry

As can be seen from the above the measured distance oscillates between the maximum measurable distance of 1000cm to nearly zero. Here’s a photo of the experimental setup that produced the above data.

WallE3 and a reflective surface

The ‘reflective surface’ is a piece of glossy black translucent plastic, oriented at an angle to reflect WallE3’s LIDAR beam upward to the ceiling and then the reflected signal from the ceiling back to WallE3.

I’ve been thinking about this issue ever since first seeing it in St. Louis, but hadn’t come up with any firm ideas about how to solve it. I tinkered with the idea of generating two running averages of the front distance when in the ‘MoveToDesiredFrontDistCm()’ function, with the two averages separated in time by some amount. When approaching a normal non-reflective surface, the two averages would closely track each other, but when approaching a reflective surface that produced the above dramatic distance shifts, then the two averages would be dramatically different around the transitions. This could then be detected, and something done to recover. Then last night while falling asleep, I wondered whether or not the STMicro VL53LXX infra-red LIDAR sensors would have the same problem – hmm, maybe not! If that were the case, then I could probably run one in parallel with the Garmin LIDAR unit, and use it instead of the Garmin for all ‘MoveToDesiredFront/RearDistCm()’ calls.

I tried this experiment using the currently installed rear distance sensors by calling ‘MoveToDesiredRearDistCm()’ with the same reflective surface setup as before, as shown in the following photo:

‘MoveToDesiredRearDistCm()’ setup with reflective surface

Here’s an excel plot of the rear distance run:

MoveToRearDistCm() with 30cm target and reflective surface

As can be seen in the above plot, the rear distance run was completely normal, so the VL53LXX infra-red LIDAR sensors don’t have the same problem – at least not with this translucent glossy plastic material.

10 December 2023 Update:

I got to thinking that maybe the reason the rear distance sensor worked so well with the shiny black material is that it could be IR transparent, meaning that while the front sensor (an LED LIDAR system) would see a ‘mirror’, the rear sensor would just see the toolbox. So, I jumped up on Amazon and got a cheap mirror square so I could answer that question. Here is a short video and Excel plot showing a ‘MoveToDesiredFrontDistCm()’ run with the new mirror square.

As can be seen from the video, WallE was perfectly happy to drive right through the mirror, but I had visions of mirror pieces all over the bench, the floor, and me, so I manually prevented that from happening. Here’s an Excel plot showing the same run:

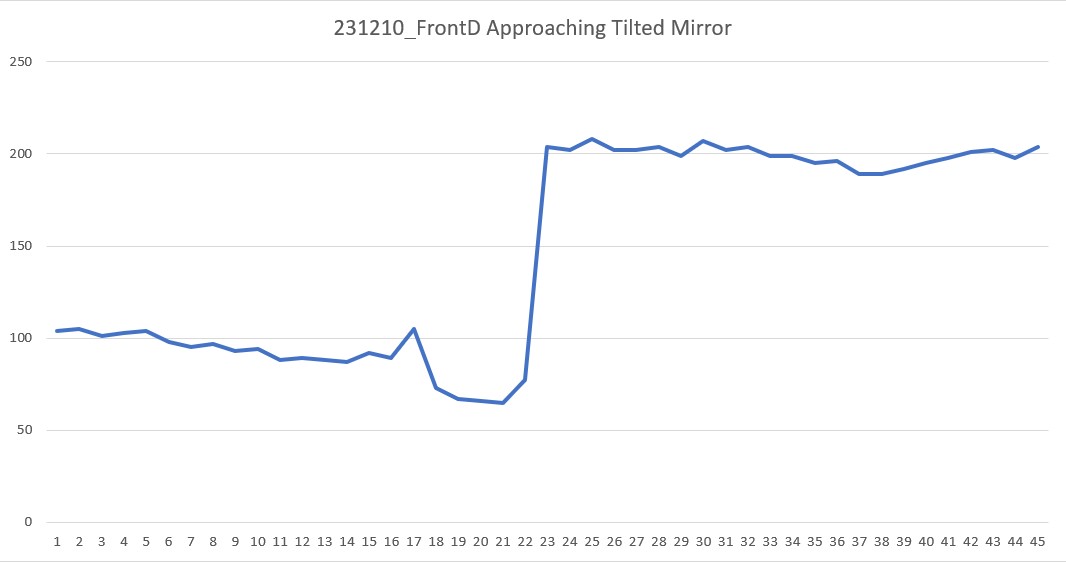

MoveToFrontDist(cm) approaching tilted mirror

As the Excel plot shows, the robot did OK for the first 20 measurements (about 1sec) but immediately thereafter started a steady 200cm, and it stayed that way until I stopped it at about 2sec

Then I tried the same experiment, but this time utilizing the STMicro VL53LXX IR LIDAR sensor on the rear of the robot, as shown in the following short video:

As the video shows, the IR LIDAR behaved pretty much the same as the LED LIDAR (no real surprise, as they are both LIDAR technology, but still a bummer!

Here’s the Excel plot for this run:

As the Excel plot shows, the distance decreased monotonically for the first 30 points (about 1.5sec) but then shot up to 200 due to the mirror. I believe the lower distances after about point 40 (2sec) were due to me interfering with the IR beam.

So, unfortunately my theory about the rear IR sensor doing better with the shiny black plastic ‘mirror’ because it appeared transparent at that wavelength seems to be bolstered, so I now think that using the VL53LXX sensor instead of the Garmin LIDAR LED sensor for ‘MoveToFrontDistCm()’ operations is NOT going to work. Back to the drawing board :(.

23 December 2023 Update:

I’ve been thinking about this problem for a while now, and have not come up with a good answer; WallE3’s perception of the world around it depends entirely on LIDAR-type distance sensors, so if those sensors produce ‘false’ distance reports due to mirror or mirror-ish surfaces, WallE3 has no way to know the ‘true’ distance – bummer!

So, what I decided to do is to simply detect the symptoms of the ‘mirrored surface’ situation, halt the robot and yell for help. The detection algorithm uses the knowledge that when the robot is moving forward toward a ‘normal’ object, the front distance should decrease monotonically with time. Similarly when the robot is moving backwards toward a ‘normal’ object, the rear distance should decrease monotonically with time. Conversely, when approaching a ‘mirror-like’ object, the measured distance tends to be unstable, with distance increasing instead of decreasing.

The detection algorithm calculates a three-point average each time through the action loop, and compares the result to the last time through the loop. If the new average is greater than the old average, a ‘mirrored surface detection’ is declared and the robot calls ‘YellForHelp()’ which stops the motors and emits an audible Morse code ‘SOS’.

Here’s the full code for ‘DoOneMoveToFrontDistCm()’ function that actually moves the robot and checks for ‘mirrored surface’ error conditions

02 January 2024 Update:

I wasn’t really happy with my previous attempt at ‘mirrored surface’ detection as it seemed pretty to produce false positives. After thinking about the problem some more, I thought I might be able to use a distance variance calculation as a more robust detection method. The idea is that a normal monotonic increase or decrease in distance measurements would have a pretty low variance, while a distance reversal would generate a much larger value.

So, I ran some simulations in Excel using a 5-point running variance calculation, and the results were encouraging. Then, with the help of my lovely lab assistant, I set up an experiment in my office sandbox to see if I could capture a representative mirrored surface ‘screwup’, as shown below:

And here is an Excel plot showing the results (both the distance and 5-pt variance vertical scales have been truncated to show the smaller scale variations)

Front Distance and 5-pt Variance (truncated vertical scales for better visibility)

As can be see in the video and the Excel plot, the robot undergoes a number of distinct front/back oscillations, but then eventually settles down. It is clear from the plot that the 5-pt variance calculation is a good indicator of a ‘mirrored surface’ condition. Just looking at the plot, it appears that a variance threshold of 40-60 should provide for robust detection without much of a risk of false positives.

One other note about this experiment. To get multiple oscillations as shown in the video and plot, the mirrored surface had to be slanted slightly up toward the ceiling. If the surface was oriented vertically like a normal wall, the robot would often miss the first distance and hit the wall, but then would typically back off to the correct distance. I think this indicates that in the vertical configuration, there is enough backscatter from the floor and/or the robot itself to get a reasonable (if not entirely accurate) LIDAR distance measurement.

07 January 2024 Update:

After playing around some more with this issue, I think the above 5pt variance calculation for ‘mirrored surface’ detection will work, so I revised my current well-tested ‘CalcBruteFrontDistArrayVariance()’ function to take a integer argument denoting the number of elements to use, starting at the end (most recent data) and working backwards.

Then I ran another test in my lab, but this time on a non-mirrored surface, to verify that the 5pt variance calc would still work properly and to settle on a good threshold for ‘mirror’ detection. The Excel plot below shows the results of a run where the robot moved backwards (still using the front LIDAR sensor) to 90cm from the wall.

Running 5-point variance of front distances

As can be seen, the variance starts out in the 10 to 20 range during the initial ‘coarse’ distance movement, but then drops into the 0 to 5 range during the second ‘fine tuning’ movement. Comparing this to the previous ‘mirrored surface’ plot leads me to believe that a threshold of 40 would almost certainly (eventually) detect a ‘mirrored surface’ condition.

24 January 2024 Update:

I added the ‘CalcFrontNPointVar(uint16_t N)’ function to the robot code so I could obtain the front variance using just the last N front distances instead of the entire 100 point array. This turned out to work very well for detecting the ‘Mirrored Surface’ anomaly condition. Then I added ‘ANOMALY_MIRRORED_SFC’ to the list of anomaly codes, and added a ‘case’ block in ‘HandleAnomalousConditions()’ to deal with this condition. The handler function is:

At the moment, all it does is call the ‘RunToDaylightV2()’ function, which does a 360º search for the best direction in which to move next. Here’s the telemetry and a short video showing the action.

This experiment led to one of those “Well, DUH!! moments, as the robot’s preferred ‘RunToDaylight()’ heading was right back at the mirrored surface!

After recovering from my ‘face-palm’ moment, I realized I needed to modify the ‘RunToDaylight() function to take heading-start & heading-end parameters to exclude the mirrored surface sector from the ‘RunToDaylight()’ search for an appropriate recovery heading.

28 January 2024 Update:

I modified ‘RunToDaylightV2()’ to take two float parameters denoting the start and ending headings for the search. In the normal non-mirrored surface case, ‘RunToDaylightV2()’ is called with no arguments. The no-argument overload simply calls ‘RunToDaylightV2(startHdg, endHdg)’ with startHdg = endHdg. In the mirrored surface case, the two-parameter version of ‘RunToDaylightV2()’ is called from the ‘ANOMALY_MIRRORED_SFC’ case block of ‘HandleAnomalousConditions()’

Here’s a short video and the telemetry from a test run toward a mirrored surface.

Stay tuned!

Frank

PID Integral Windup Problem in MoveToDesired(Front|Back|Left|Right)Distance()

Leave a reply

Posted 14 November 2023

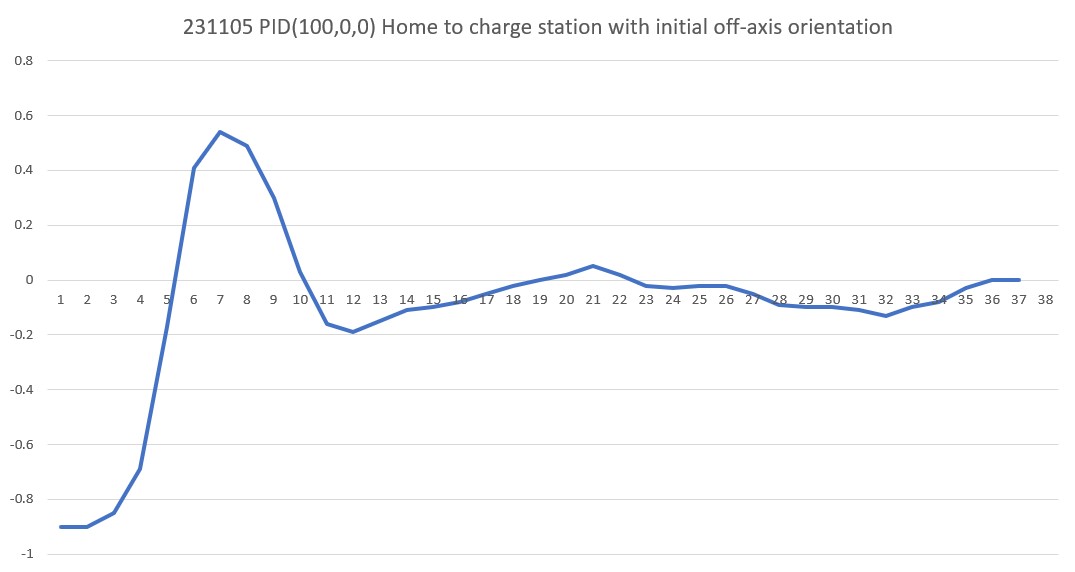

After getting the charging station (re)integrated with the rest of the system, I have been working on complete travel-charge-travel charge cycles, where WallE3 travels around the house, finds and connects to the charger, disconnects, travels around the house some more, and then finds its way back to the charger – lather, rinse, repeat.

However, in the process I have run into a problem with the MoveToDesired(Front|Back|Left|Right)Distance() function. On several occasions the robot has blown right by the desired distance and run headlong (or backlong?) into a wall. Investigating has led me to realize that the cause of this problem is the infamous ‘integral windup’ characteristic inherent in insufficiently sophisticated PID algorithms. Here’s the relevant telemetry from a recent MoveToDesiredFrontDistance() run, and an Excel plot showing the ‘integral windup’ issue.

MoveToDesiredFrontDistance run showing integral windup problem

In the above Excel plot, the initial error is -221, which causes an output of ~300. The motor speed is clamped to -75, so the distance and error start slowly heading toward the target of 30cm and an error of zero. However, the integral (I) term continues to increase from near zero to well over -1000, and the output term was completely dominated by the integral value, keeping the motor speed clamped at -75 even as the measured distance approached and passed the target. In this particular case, I got lucky as the actual distance and the target distance were within the +/- 1cm termination window and the loop terminated. In other cases where the actual distance went through the termination window too rapidly, the robot would basically continued forever – or at least as long as necessary to ‘unwind’ the integral term.

So, what to do? Reading up on ‘integral windup’, I found this article from around 1990 (judging by dates on the references), and I decided to try the method described there as the ‘back-calculation and tracking’ method. The idea is that when the output gets clamped to some maximum value (+/- 75 in this application), the integral value is recomputed to a value that would produce the output that would naturally produce the clamp value. For instance for an error value of -221, the Ival is -22.1 which results in an output of -309, which gets clamped to -75. For an output of -75 with an input error of -221 we have -221 + Ival*(-221) + (-221*1.5) = -75 –> Ival = (-75 + 331.5)/-221 = -1.16. Checking, -1.16*(-221) = 256.36, 1.5*(-221) = 331.5, 256.36 – 331.5 = -75.14.

After thinking about this some more, I wondered if instead of back-calculating a new I value, maybe I could simply zero out the retained ‘last_Ival’ parameter whenever the PID output value is high enough so that it would get clamped. Assuming the same clamping value of 75 and a ‘P’ value of 1.5, this would happen any time the absolute value of the error value is greater or equal to 75/1.5 = 50.

Using Excel to apply this algorithm to the telemetry above telemetry data, I get the following plot.

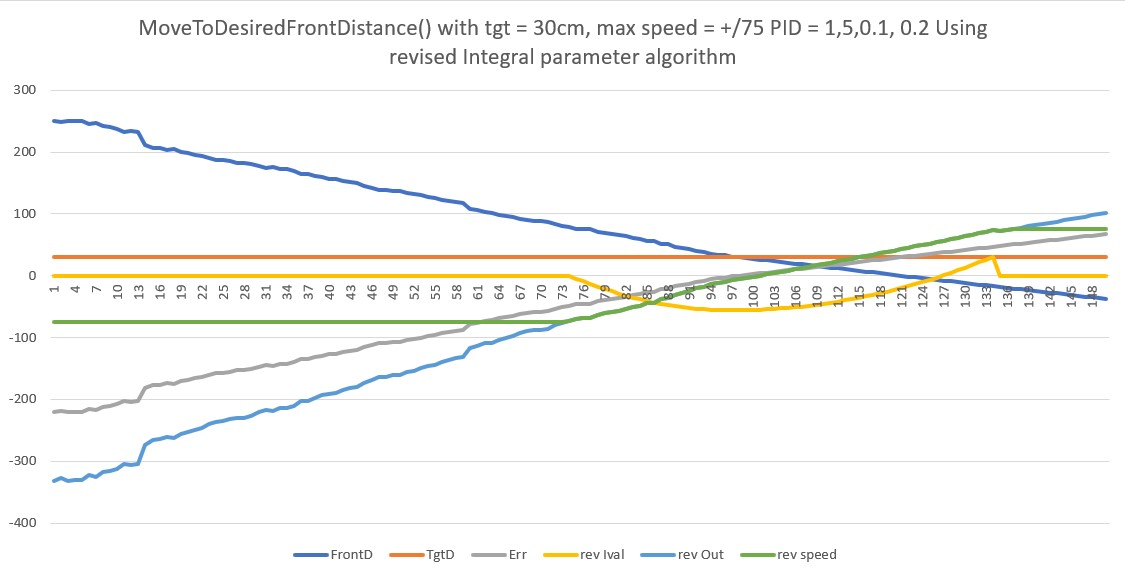

MoveToDesiredFrontDistance run showing integral windup problem, with modified Integral term algorithm

In the above plot, the integral term (yellow line) was modified to be exactly zero whenever the output would have been > 75 or < -75 (the motor speed clamping values), even with a zero I value. As can be seen above, it stays zero until point 75. After that it smoothly decreases to about -55.6 at point 99, and then smoothly increases to about 30.98 at point 135, at which point is gets clamped to zero again. The motor speed value (green line) stays at -75 to point 75, at which point it smoothly (and linearly it appears) increases to +75, where it is clamped again.

I believe this might just do the trick. It will certainly prevent infinite runaway if the error term goes through zero too quickly to cause the loop to exit, as the robot will stop and then back up to the target distance.

I *think* I can modify my ‘PIDCalcs()’ function, and then everything that uses it will get the benefit of the ‘non-winding integral term’ algorithm.

17 November 2023 Update:

One day to go until SpaceX makes its second attempt at getting the world’s largest rocket into space – yeah!

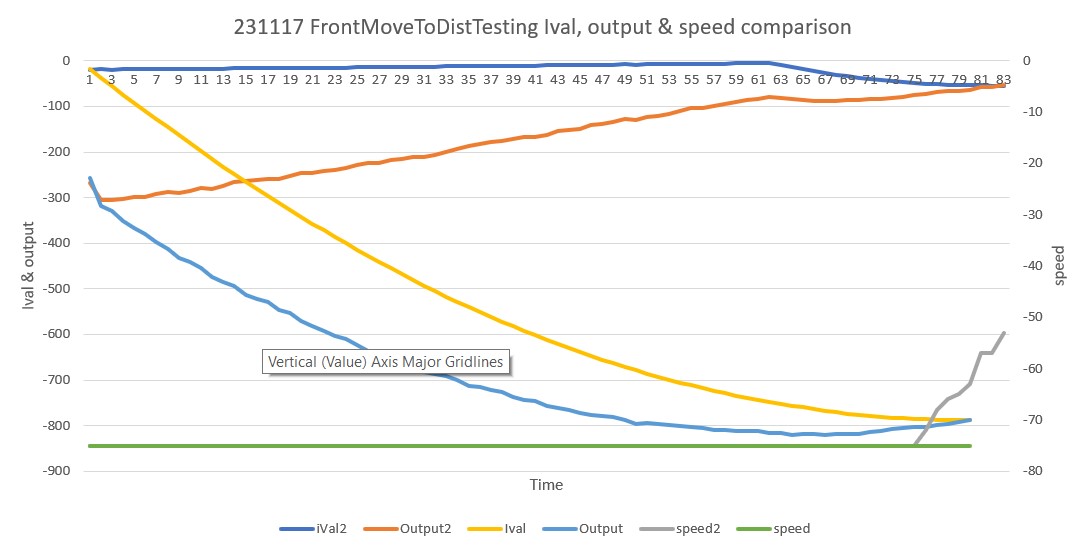

To work the ‘integral term windup’ issue, I ported the FrontBackMotionTest code from an earlier program into the WallE3_Quicksort_V4 project so I could iterate easier, and got that running. As a baseline, here is the telemetry and a short video from the first run:

As can be seen in the above telemetry, the ‘Ival’ column shows that the integral term increases monotonically from -19.7 to -998.4, forcing the speed to its maximum value (75) for the entire run. This causes the robot to badly overshoot the target distance, which is why I decided to have the robot perform the ‘second time through’ action shown in the telemetry and video.

I added the following code to MoveToDesiredFrontDistCm() to zero out the ‘lastIval’ value if the error term * Kp > MOTOR_SPEED_QTR

Here is the telemetry and the video from the run with the above change

As can be seen from the above, this change did not affect the robot’s behavior significantly – it still badly overshot the target distance and the ‘second try’ was still required to bring the robot back to nearer the target. However, from inspection of the ‘Ival’ values it is clear that the added code is doing its job of zeroing out the ‘lastIval’ term when [error_term]*Kp > Max speed. Here’s an Excel plot showing the ‘Ival’ and ‘output’ terms from both the above runs.

comparing Ival, output, speed vals before and after Ival clamp mod

In the above plot, the ‘after Ival term stays at a very low (negative) value for almost the entire run, due to the new clamping code. Consequently the ‘after’ output term decreases linearly with the decreasing error term until the resultant ‘after’ speed command comes off the -75 ‘stop’ as shown by the gray line in the above plot.

Unfortunately, the speed reduction from ‘lastIval’ clamping isn’t enough to prevent the robot from overshooting almost as much as it did before. This indicates (at least to me) that at least the Kp value is way too high. Just as a thought, the Kp value should be just high enough so that if the distance error is, say, 100cm, then the output would just clamp at MOTOR_SPEED_LOW –> 75. So, 100*Kp = 75 –> Kp = 0.75, or about half its current value.

It turned out that I not only needed to cut the Kp value in half, but the Ki value as well, so now PID = (0.75, 0.05, 0.2). Here’s the telemetry and video from a run using these values:

I wasn’t able to eliminate the ‘second try’ requirement, although I was able to reduce the overshoot to about half its previous value.

One possible fly in the ointment is the rapid drop of the front variance value during the second run through MoveToDesiredFrontDistCm(); this *should* have triggered an exit from the function with anomaly code = ANOMALY_STUCK_AHEAD, but didn’t – and I don’t know why.

Too tired to go down this rabbit hole tonight – try again tomorrow while waiting for Space X to make history with its second StarShip test flight!

18 November 2023 Update:

Wow! Wow! Wow! I had the pleasure of watching SpaceX’s literally historic second Starship test launch this morning, and I’m still psyched! I have now had the pleasure of watching both a Saturn V launch as part of the Apollo moon landing program and now the Starship and booster launch as part of (I hope) the Mars landing program.

OK, back to robots. Last night while drifting off to sleep, it occurred to me that the ANOMALY_STUCK_AHEAD alert is conditioned on the current motor configuration as well as the front variance value. Here is the actual code that determines this:

So in this case, the motors were running in reverse, so neither of the motor conditions were TRUE, and therefore IsStuckAhead() returned FALSE. Mystery solved!

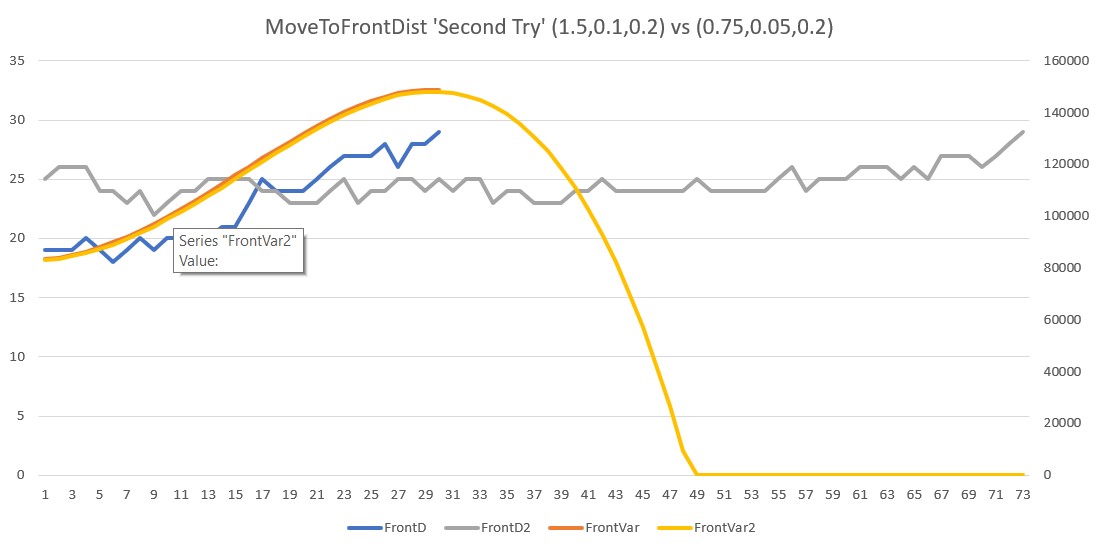

At this point I think I’ve done as much as I can with the FrontBackMotionTest program. I will modify the other ‘MoveTo’ functions to clamp the Ival term as described above. However, it is also clear that the ‘second try’ part of the ‘MoveTo’ functions cannot be eliminated without having to accept significant target distance overshoot, and that the original PID values (1.5, 0.1, 0.2) actually work better than (0.75, 0.05, 0.2), as the lower PI values cause the second try operation to take significantly longer. Here’s an Excel plot comparing just the ‘second try’ results for both:

‘Second try’ results for (0.75,0.1,0.2) and (0.75, 0.05, 0.2)

In the above plot, the ‘2’ results are for (0.75, 0.05, 0.2). As can be seen, the ‘2’ configuration takes over twice as long to complete as the ‘normal’ (1.5, 0.1, 0.2) run, and the issue with the front variance value going to zero doesn’t exist for the ‘normal’ run.

This makes it clear that while clamping the Ival does help significantly, the change in PID values does not.

18 November 2023 8:43PM EST Update:

While cleaning up the code, I noticed I had missed one spot where the global OffsetDistKp value should have been replaced by ‘Kp’, the local value, and unfortunately it was in the section that determined whether or not the Ival value would be clamped, as shown below:

This had the effect of skewing the point at which the Ival stopped being clamped, so the previous results are a bit suspect. I ran a few more tests, and discovered the function actually performed better with a higher Kp value than the original 1.5. The reason for this is that a higher Kp value moves the point at which Ival can start accumulating later in the run (closer to the target distance thus less error), and so more quickly reduces motor speed. In addition, the Ival clamping action has no effect on the second pass through the function as the motor speed values never approach the max speed, so this part operates as designed as well. Here’s a run showing the result of using a PID of (2.0, 0.1, 0.2):

As the data shows, the overshoot is only 6cm (as opposed to the 18cm overshoot without the Ival clamp), and the recovery pass completes in about 2 sec instead of over 5. Here are Excel plots showing the primary and secondary passes.

Second pass correction with PID (2.0,0.1,0.2). Time scale is 20 units/sec, so total time ~ 1.5sec

So, it looks like I want to change the global OffsetKp value from 1.5 to 2.0, leaving Ki & Kd unchanged.

19 November 2023 Update:

Looking back at the results from the above tests, I realized that the second call to MoveToDesiredFrontDistCm(Offset, Kp, Ki, Kd) (the ‘second time though’ step) isn’t actually in the MoveToDesiredFrontDistCm() function – it is part of the test harness. So, I think I need to incorporate the second pass directly into the function so it will get performed everywhere MoveToDesiredFrontDistCm() is called. I wonder if I can do this recursively, by calling MoveToDesiredFrontDistCm() from inside MoveToDesiredFrontDistCm()?

So, I moved the ‘Second Time Through’ code from the test harness into MoveToDesiredFrontDistCm(), as shown below:

Here’s the telemetry from the run with recursive MoveToDesiredFrontDistCm() calls:

The first run through MoveToDesiredFrontDistCm() occurs normally, with the exit at the 30cm target distance as expected, and then the expected overshoot to 25cm. Then the second call to MoveToDesiredFrontDistCm() starts at 24cm and gets to 29cm in approximately 1.5sec, followed by two more 10-item distance displays. I guess the first distance display is from the one inside the MoveToDesiredFrontDistCm() call, and the second one is the one from the test harness. I need the delay caused by the 10-distance display, but I can probably replace it with just a 1-sec delay.

Here’s another run with the loop replaced by a 1-sec delay:

From the above, it looks like the function is doing what it should. It keeps iterating until the distance measured after a 1-sec delay fits within the +/- 1cm window.

MoveToDesiredRearDistCm():

Now that MoveToDesiredFrontDistCm() is working, I started on MoveToDesiredRearDistCm(). I started by copying MoveToDesiredFrontDistCm() and changing all relevant occurrences of ‘Front’ to ‘Rear’. This was about 99% of the required effort. However, there were two issues that surfaced during the port. The first was that the test program needed the ability to pass the PID values into the function, but all the mainline code uses just a single parameter (the desired offset). As a temporary fix I created a four-parameter version of the function with all the code, and had the single parameter version pass the global PID values to the four-parameter on. However a much better solution was to remove the single parameter version of MoveToDesiredFrontDistCm() entirely, and instead declare the four-parameter version with three default values right after the definition, as shown here:

The second issue was the sign of the speed variable in the RunBothMotorsBidirectional() function. For MoveToDesiredFrontDistCm() the parameters to this function had to both be negative, as in RunBothMotorsBidirectional(-speed, -speed), but in the MoveToDesiredRearDistCm() they have to be positive as in RunBothMotorsBidirectional(speed, speed). Once this was accomplished, the MoveToDesiredRearDistCm() operation was successful.

MoveToDesiredLeft/RightDistCm():

I started on these two functions, but soon realized that these two functions aren’t called anymore. They were originally used as part of wall offset capture operations, but were abandoned in favor of an algorithm that uses a perpendicular approach. Soooo, I will just remove these two functions entirely and call it good!

Stay tuned,

Frank
